What are the precautions for TPE overmolding?

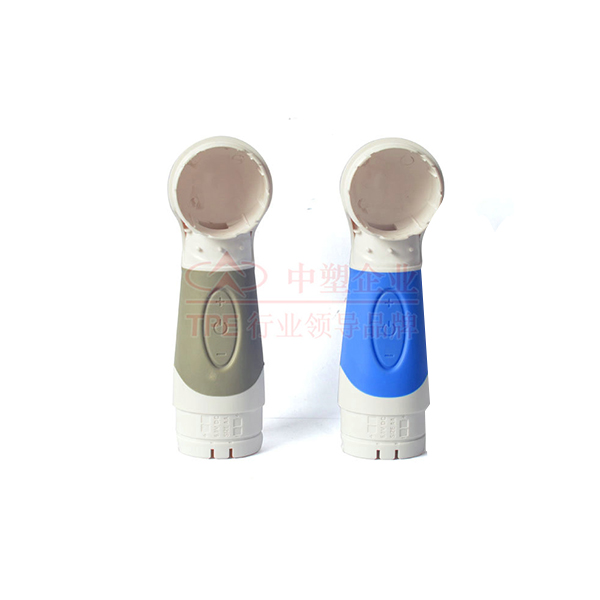

TPE overmolding, also known as two-color/multi-color injection molding, is an advanced manufacturing process in which TPE material is coated onto another substrate. This process can create products that combine a soft touch, good elasticity, non-slip properties, and an aesthetically pleasing appearance, such as sports equipment handles, tool grips, mobile phone cases, and electronic product casings. However, successful TPE overmolding is not easy, requiring extremely high standards in process parameters, material selection, and mold design. So, what are the precautions for TPE overmolding? Let's take a look at them below!

TPE overmolding precautions are as follows:

1. Material Matching

Successful overmolding begins with the right material combination. Not all TPEs naturally bond strongly to substrates. The type of TPE (e.g., TPE-S, TPE-E), hardness, flowability, and the surface properties of the substrate all determine bond strength. Therefore, rigorous compatibility testing is essential to select a TPE formulation that meets product performance requirements while ensuring good adhesion to the substrate. Ignoring this point can lead to product failure due to interface delamination, even with the most perfect process.

II. Mold Design

Parting surfaces and weld lines: Careful design is required to ensure the TPE can fully flow and cover the substrate, forming an ideal bonding area while avoiding noticeable weld lines.

Venting system: A well-designed system ensures that air in the mold cavity can be smoothly exhausted during TPE injection to prevent trapped air from causing product shortfalls or poor bonding.

Cooling system: Uniform and efficient cooling controls the TPE's curing speed, impacting product dimensional stability and demolding ease.

III. Process Parameters

TPE temperature: Too high a temperature can easily decompose the TPE, resulting in good flowability but potentially dimensional instability. Too low a temperature can lead to poor flowability, making it difficult to fill the mold cavity and even failing to effectively cover the substrate. Experimentation is required to find the optimal balance based on the TPE's characteristics and product structure. Injection Pressure and Speed: Ensure that the TPE fills the mold cavity with sufficient pressure and an appropriate speed. Avoid excessive pressure, which could cause substrate deformation or TPE flash, and insufficient pressure and slow speed, which could cause incomplete filling or a weak bond.

Dwelling Pressure and Cooling Time: The holding time should be sufficient to allow the TPE to establish a stable bond with the substrate, while the cooling time should ensure that the product is fully cured and set to avoid deformation during demolding.

IV. Substrate Preparation

Cleanliness: The substrate surface must be thoroughly clean, free of contaminants such as oil, dust, and moisture, as these impurities are key obstacles to adhesion.

Surface Activation: Sometimes, if the substrate surface is too smooth, it may be necessary to roughen it through light sandblasting, apply a specialized primer to chemically enhance the interfacial adhesion, or even employ advanced methods such as plasma treatment to achieve stronger mechanical and chemical bonding.

V. Production Stability

In addition to the above points, stability in the production process is also crucial. Variations in TPE material batches, changes in ambient humidity, and fluctuations in injection molding machine performance can all affect the final product. Establishing a rigorous quality control process and regularly inspecting equipment and materials are crucial to ensuring long-term stable production and consistently producing quality products.

In short, TPE overmolding is a process that demands the utmost attention to detail. From material selection and mold design to process control and substrate preparation, every step requires meticulous design and rigorous scrutiny. Only by optimizing these elements in tandem can challenges be overcome, resulting in TPE overmolding products with a secure bond, superior performance, and a refined appearance.
