TPE Thermoplastic Elastomer Production Process

TPE, a new polymer material that combines the elasticity of rubber with the processing ease of thermoplastics, is thriving in numerous fields, including automotive, electronics, medical, toys, footwear, and daily necessities, thanks to its unique performance advantages. So, how much do you know about the TPE production process? Below, the editors of Shenzhen Zhongsuwang TPE will provide a detailed introduction to this question.

The TPE production process can be broadly summarized into the following key steps: raw material preparation, mixing, pelletizing (or direct molding), and the final product formation.

1. Raw Material Preparation

TPE thermoplastic elastomer is not a single component, but rather a carefully crafted combination of multiple materials. Its core is a polymer matrix, such as styrenics (SBS, SEBS, etc.), polyolefins (TPU, TPO, etc.), polyesters (TPEE), or polyurethanes (TPU). This matrix determines the basic properties of TPE. In addition to the base, the formulation also requires softeners/plasticizers (to reduce hardness and increase fluidity), fillers (such as calcium carbonate, to increase hardness and reduce cost), vulcanizers (required by some TPEs to improve strength and heat resistance), stabilizers (antioxidants and UV inhibitors), colorants (to impart color), and processing aids. Accurately weighing and mixing these ingredients is the first step to ensuring product quality.

II. Compounding

The prepared raw materials are fed into compounding equipment such as an internal mixer or twin-screw extruder. Under the influence of high temperature and shear forces, the various components are forcibly mixed, and the polymer matrix and other additives are uniformly dispersed at the molecular level. This process is crucial, as it determines the compatibility and dispersion of the components and directly affects the final properties of the TPE, such as strength, elasticity, and durability. The compounding process requires precise control of temperature, time, and equipment parameters to ensure uniform mixing and avoid excessive material degradation.

III. Granulation

The uniformly mixed molten material is typically extruded and cooled with water or air before being cut into small, uniform particles, known as TPE pellets. The purpose of granulation is to facilitate material storage, transportation, and subsequent processing. After drying, the granulated TPE material can be easily used in various thermoplastic processing equipment, just like ordinary plastic pellets. Of course, for certain specific applications, the granulation step can be omitted, and the mixed melt can be directly processed into the next step of molding.

IV. Product Molding

This is a key step in transforming TPE thermoplastic elastomer into a finished product. Leveraging TPE's thermoplastic properties, a variety of established plastics processing methods can be employed:

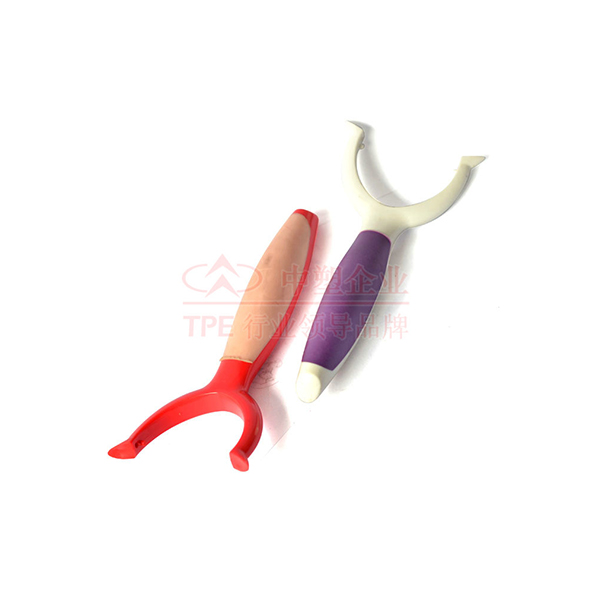

Injection molding: This is the most commonly used method, particularly suitable for manufacturing complex, precisely sized products such as toys, tool handles, seals, and mobile phone cases. TPE pellets are placed in the injection molding machine hopper, heated to a melt, and then injected under high pressure into the mold cavity. The finished product is obtained after cooling.

Extrusion: This is suitable for producing long, strip-shaped products such as pipes, sheets, wire, and door and window seals. The molten TPE is continuously extruded through the extruder die, where it is then cooled to set its shape. Calendering: Primarily used to produce sheets or films, it can also be used to calender TPE onto fabrics to form composite materials.

Other methods include blow molding (used for hollow products, less common) and rotational molding.

Strict quality control is essential throughout the entire production process. From raw material inspection and process parameter monitoring (temperature, pressure, time, etc.) to finished product performance testing (hardness, tensile strength, aging resistance, etc.), we ensure that the final product meets design requirements.

In summary, the production process of TPE thermoplastic elastomers begins with carefully proportioned raw materials, achieves molecular-level uniform mixing through intensive mixing, then pelletizes for ease of use, and finally utilizes its thermoplastic properties for efficient molding. This process combines the art of chemical formulation with precision machining techniques to produce TPE products with excellent performance and a wide range of applications.
