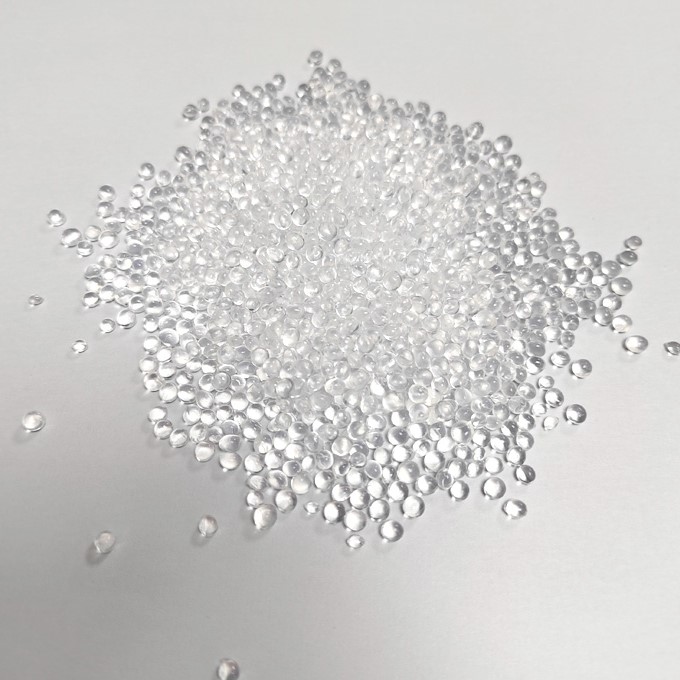

Encapsulated TPU

Encapsulated TPU material features strong adhesion, preventing delamination and edge curling. It offers high elasticity, wear resistance, and a smooth texture, making it ideal for overmolding onto substrates such as PC, ABS, and PP. It is widely used for overmolding on handles, electronic devices, tools, and sports equipment. We invite you to learn more.

Send Inquiry

Product Description

Zhongsu Wang’s Encapsulated TPU is specifically designed for overmolding. It bonds firmly with substrates such as PC, ABS, PP, and PA, preventing delamination and white line formation. It combines high elasticity, abrasion resistance, slip resistance, weather resistance, and hydrolytic stability with excellent processing flow, no migration, and easy molding. Widely used for soft rubber overmolding on tool handles, electronic components, cable sheaths, sports equipment, and automotive interiors, it enhances grip and protection, making it the material of choice for high-quality overmolded parts.

Advantages:

1. Proprietary coating formulation ensures a strong bond that resists peeling, curling, and cracking.

2. Highly elastic and shock-absorbent, with excellent wear and scratch resistance; offers a skin-friendly, non-slip texture.

3. Resistant to oil, weathering, and hydrolysis; maintains its shape even after long-term use.

4. Excellent flow properties and no leaching; suitable for mass production.

Specifications

Project	Unit	Type Value
Encapsulated TPU
Hardness	Shore-A/D	80A	85A	90A	95A	98A	50D	55D
Specific Gravity	g/cm3	1.27	1.3	1.31	1.32	1.33	1.34	1.36
Tensile strength	MPa	32	40	43	52	55	58	62
Tensile modulus 100%	MPa	21	27	30	41	40	41	45
Elongation at break	%	350	300	260	200	170	150	130
Surface impedance (conductive)	Ω	10E3～5	10E3～5	10E3～5	10E3～5	10E3～5	10E3～5	10E3～5
Recommended melting temperature	Drying time		Drying temperature		The values in the table represent typical values only, not absolute values.
160-220℃	3H-4H		90-100℃

Hardness: Adjustable from 60A to 95A (Shore A).

Compatible Substrates: PC, ABS, PP, PA, PS, etc.

Processes: Overmolding, Extrusion Coating.

Properties: High adhesion, high resilience, abrasion resistance, weather resistance.

Environmental Compliance: RoHS, REACH. some grades are food-grade compliant.

Applications of TPU Coating

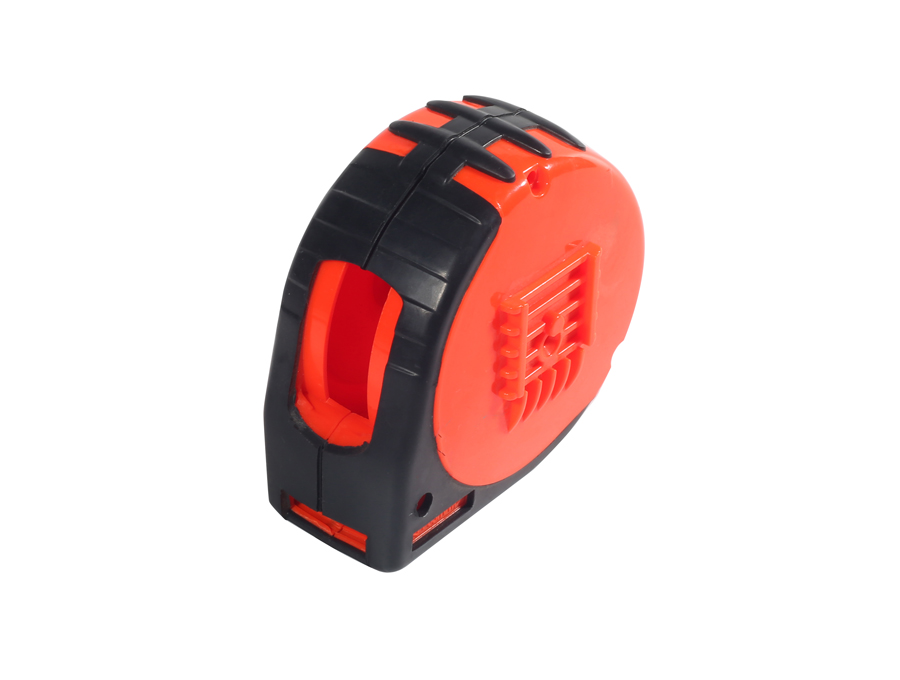

Used in tool handles, electronic casings, data cables, sports equipment, automotive interiors, home appliance buttons, and more.

What are the advantages of our Encapsulated TPU services?

We offer customization of hardness, color schemes, and material modifications; provide samples and technical guidance; maintain a stable inventory of in-stock products; and ensure fast delivery times.
