Core Products
Antistatic Conductive TPU
  • Antistatic Conductive TPUAntistatic Conductive TPU

Antistatic Conductive TPU

Zhongsu as a professional high quality Antistatic Conductive TPU manufacture, you can rest assured to buy v from our factory and we will offer you the best after-sale service and timely delivery.

Antistatic conductive TPU

Zhongsu Antistatic conductive TPU is a special application improved on the basis of TPU. Through special additives and precision processing, we can provide antistatic grade 10E6~9, and conductive grade 10E3~5 can be black. The product has outstanding stability, processability, no powdering and no decay, and is permanently antistatic and conductive.

High quality Antistatic conductive TPU is a special application improved on the basis of TPU. Through special additives and precision processing, we can provide antistatic grade 10E6~9, and conductive grade 10E3~5 can be black. The product has outstanding stability, processability, no powdering and no decay, and is permanently antistatic and conductive.


Product features:

Permanent antistatic agent has no dependence on the humidity of the environment and can ensure use under harsh conditions. It does not affect the processing performance of the product and significantly reduces the surface resistance of the product. It has stable resistance value and good compatibility with TPU resin, and can be used for extrusion or injection molding products. It has good flexibility, good wear resistance, superior physical properties, no fading, corrosion resistance, high strength, flame retardant and other advantages;


The products are widely used in:

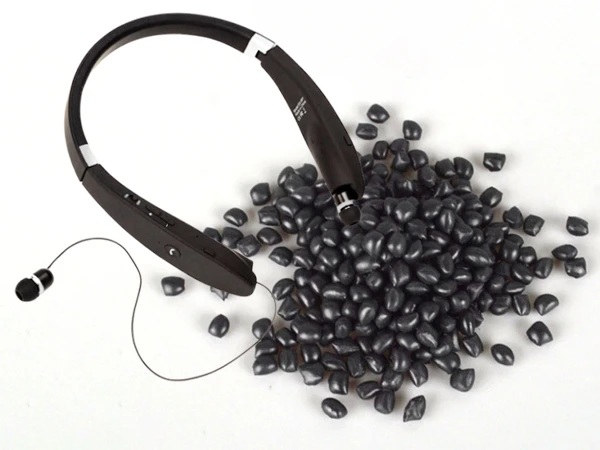

Electronic accessories, electronic instrument accessories, antistatic casters, heart rate belts and other electronic products. We can provide targeted solutions according to different requirements and provide free samples for confirmation and trial.


Project Unit Type Value
Anti-static TPU
Hardness Shore-A/D 80A 85A 90A 95A 98A 50D 55D
Specific Gravity g/cm3 1.19 1.19 1.2 1.21 1.21 1.22 1.22
Tensile strength MPa 23 26 32 38 43 42 45
Tensile modulus 100% MPa 7 9 11 13 17 15 19
Tensile modulus 300% MPa 12 15 17 21 26 22 29
Elongation at break % 680 645 600 560 520 500 480
Surface resistance (antistatic) Ω 10E7~10 10E7~10 10E7~10 10E7~10 10E7~10 10E7~10 10E7~10
Recommended melting temperature Drying time Drying temperature The values in the table represent typical values only, not absolute values.
160-220℃ 3H-4H 90-100℃

Project Unit Type Value
Conductive TPU
Hardness Shore-A/D 80A 85A 90A 95A 98A 50D 55D
Specific Gravity g/cm3 1.27 1.3 1.31 1.32 1.33 1.34 1.36
Tensile strength MPa 32 40 43 52 55 58 62
Tensile modulus 100% MPa 21 27 30 41 40 41 45
Elongation at break % 350 300 260 200 170 150 130
Surface impedance (conductive) Ω 10E3~5 10E3~5 10E3~5 10E3~5 10E3~5 10E3~5 10E3~5
Recommended melting temperature Drying time Drying temperature The values in the table represent typical values only, not absolute values.
160-220℃ 3H-4H 90-100℃

Antistatic Conductive TpuAntistatic Conductive Tpu




Hot Tags: Antistatic Conductive TPU
